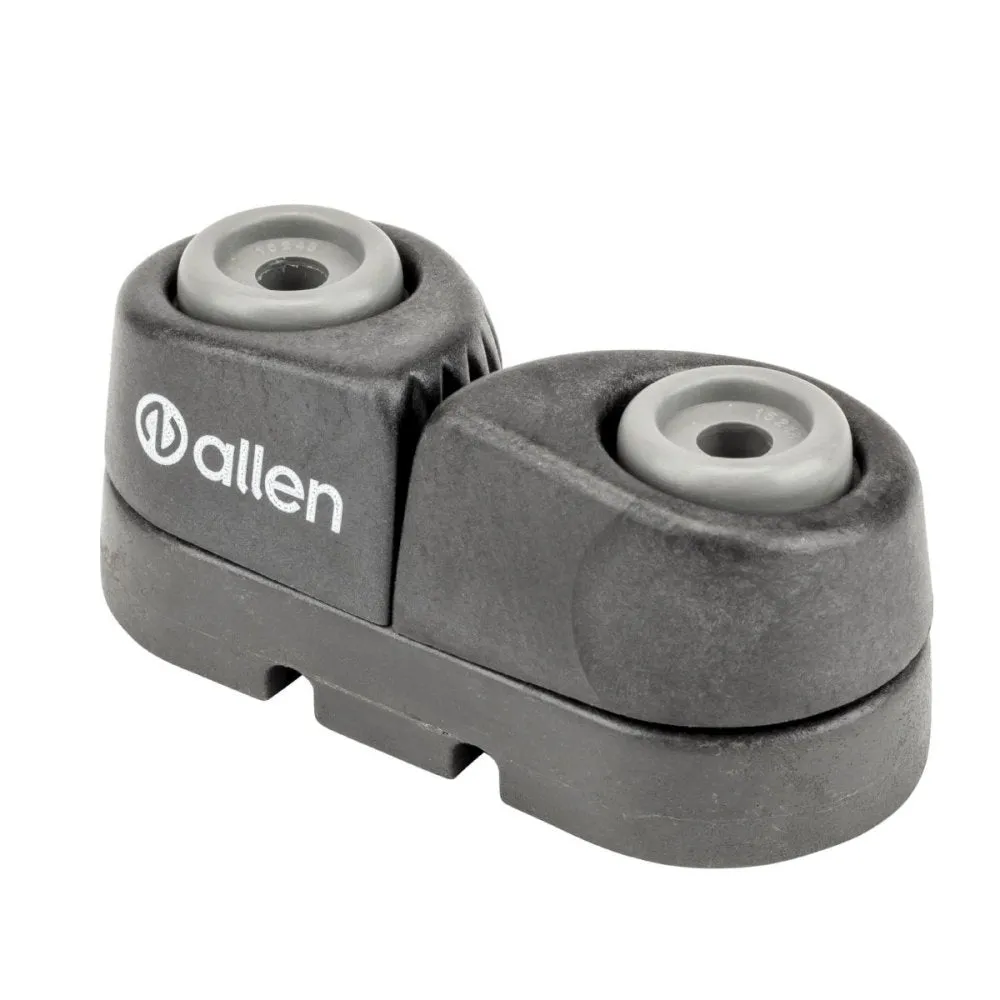

Allenite Cam Cleat Medium. A.676
Allenite Plain Bearing Cam Cleats feature the same jaw profile as the aluminium version, but the jaws and base are moulded from a proprietary material developed specifically for low weight and good heat dissipation to increase wear resistance when compared to standard acetals. The removal of ball bearings offers a further weight reduction.
The Allenite cam cleat offers a good weight saving over the aluminium version. Allenite cam cleats are designed as a cheaper alternative for low load applications.
Typically used on the Laser Pico dinghy for the jib and mainsheet cleats.
Allen A.676 Cam Cleat Properties
Number of Base Fixing Holes | 2 no. |
---|---|
Base Fixing Hole Spacing | 38 mm |
Overall Height | 29 mm |
Maximum Line Dia. | 4-10mm |
Maximum Working Load | 130 kg |
Fixing Hole diameter | 5 mm |
Weight | 34 grams |
